GD&T - The Next Generation

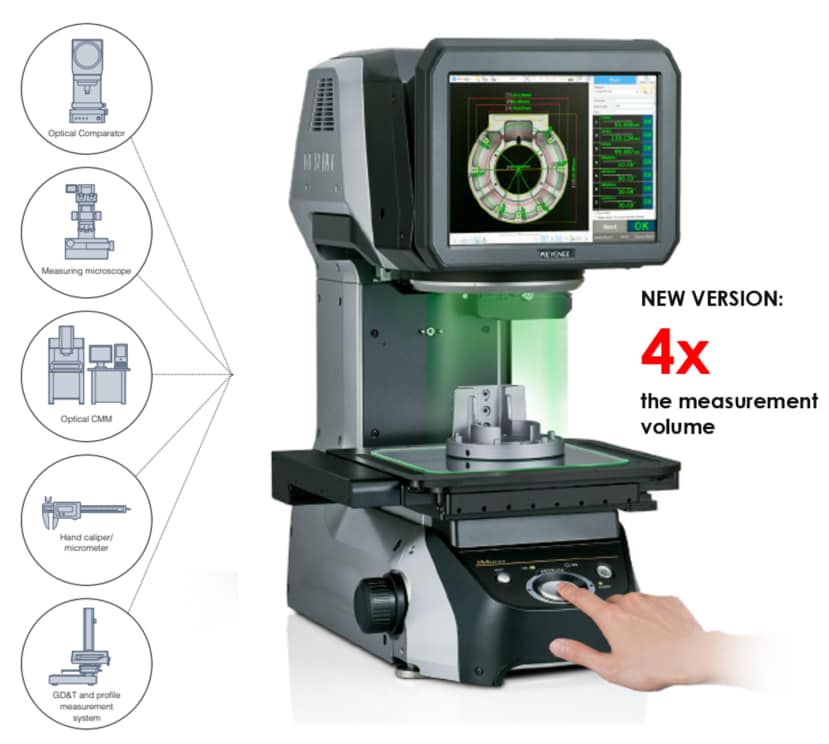

Incorporating all the great functions from numerous conventional equipment such as

- Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper - GD&T -

The IM Series Image Dimension Measurement System is a completely new measurement system that performs dimensional measurement with a simple “Place and Press” operation.


Find out what you can get from the New Version General Catalogue of the IM Series

or contact us at +65 9126 6770 to find out more

  • New Version General Catalogue

  • 3 BIG problems in the industries:
    • Slow measurement up to minutes
    • Inconsistent results
    • Complicated processes and data collection

    Solutions from the IM Series:
    • Measure up to 99 dimensions on a part within 5 seconds
    • 3 build-in automated functions eliminate operator error
    • Intuitive interface allows easy set up and data storage
