Measurement 1Triangulation Laser Displacement Sensor

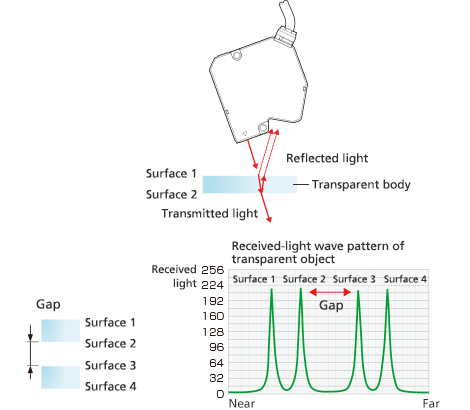

With transparent bodies, the target is illuminated from above by a laser, so gaps can be measured by light transmitted through the body.
KEY POINTS
Sensor head selection is important
- Is at least the minimum gap provided so that the two surfaces can be identified?
- Can measurement be performed stably even if the two surfaces have different reflectance?
LK-G Series
- Triangulation method.
- World's fastest sampling rate, 392 Khz.
- 12 Sensor heads can be connected.
